Storage Changing Paradigms in Electric System Design and Operations

by Bob Shively, Enerdynamics President and Lead Facilitator





“Building networks to accommodate peak demand – or lulls in supply – requires overbuilding of infrastructure that leads to extra costs and system inefficiencies.”
Sam Wilkinson, IHS [1]




As we explored in last week’s blog, the gas system has optimized the mix of pipeline capacity, storage, and customer demand management to reduce the costs of building expensive infrastructure.

While the electric grid has utilized demand side management to reduce peak capacity needs, it until recently only had one cost-effective form of storage — pumped hydro — which is only available in limited geographic regions. (As of 2015, the U.S. had 156 pumped hydro plants that made up 2% of the peak summer capacity.) Hence almost all fluctuations in demand are met by adjusting supply through power plant dispatch.  The result is significant power plant capacity that sits idle much of the year.

However, recent advances and falling costs in electric storage technologies, especially lithium ion batteries, suggest that a new paradigm of optimized storage throughout the grid may rapidly change principles of electric system design and operations.


“Similar to the rise of wind and solar generation in the last 15 years, we are now starting to see exponential growth in the deployment of battery-based energy storage systems, thanks in part to a rapid decline in pricing for lithium-ion batteries.” [2]




Cost declines in lithium ion batteries
    Source:  Bloomberg New Energy Finance

The potential for cost-effective electric storage is coming none too soon — the system that once had to accommodate fluctuations in demand now needs to also accommodate lulls in supply as more renewables with variable output are connected to the grid. This is true on the bulk power system as indicated by the now famous California duck curve as well as on specific distribution circuits as demonstrated by the Hawaii “Loch Ness Monster” curve.

duck curve

loch ness curve

Fortunately, the modular nature of batteries allows for the possibility of placing storage on the grid where it is most beneficial, ranging from centralized renewable generators all the way to behind the customer meter. Making distributed storage most useful will require communications systems that allow storage to be operated as part of the greater distribution and/or transmission system. Again, developments in battery technologies are being accompanied by rapid expansion of digital communications networks throughout the distribution grid all the way to the customer meter.

storage deployment across grid

Source: EIA Today in Energy

Many utilities are now implementing various storage projects to develop the knowledge that will result in growing use of developing storage technology. We will look forward to watching the evolution of the electric grid as cost effective storage allows new forms of optimal design and operations.



Want to learn more about how electric systems work?  Look into Enerdynamics’ Electric Systems Fundamentals seminar available online or live. And if you want to learn more about energy storage, contact us about Enerdynamics’ live seminar Energy Storage: Applications, Technologies, and Economics.


Footnotes:

[1] From Reaching peak performance: What the electric power sector can learn from society’s other vital networks, Sam Wilkinson, available at https://cdn2.hubspot.net/hubfs/2810531/Collateral/AES%20ES%20White%20Paper%20-%20IHS-Markit%20The%20New%20Energy%20Network.pdf

[2] Ibid, p. 3

Posted in Electricity | Tagged , , | 1 Comment

Storage in Design of Gas and Electric Systems

by Bob Shively, Enerdynamics President and Lead Facilitator


“Building networks to accommodate peak demand — or lulls in supply — requires overbuilding of infrastructure that leads to extra costs and system inefficiencies.” ~ Sam Wilkinson, IHS [1]


A key to efficient design of gas networks is the interplay between pipeline capacity that can deliver supply into a region and storage that can supplement supply when flowing pipeline gas is insufficient to meet demand.

As costs for certain electric storage technologies decline, designers and operators of electric systems are beginning to envision a future where electricity storage will be used to significantly improve the efficiency of electric networks in a similar way. Let’s explore the principles behind use of storage to improve system efficiency and look at how storage is used in gas systems. Next week we will discuss how it may be increasingly used in electric systems.

As described by Sam Wilkinson in the IHS whitepaper Reaching Peak Performance, networks are commonly designed to ensure that supply can meet demand even during periods of unusually high demand and or lulls in supply (although this is not always true — failure to build for peak demand is why we end up sitting on the freeway during rush hour or can’t text on our phones during a popular sporting event). Of course, building for peak demand is expensive. The result is that consumers must pay for facilities that sit idle much of the time.

An example of this from the electric world: the California ISO has a typical annual peak load exceeding 46,000 MW while the typical average annual load is more like 22,000 MW. To ensure the peak can be met, the California system maintains about 55,000 MW of capacity plus transmission to import power from out of state. This means that almost half of the system is underutilized during numerous hours of the year. Indeed, looking at the load duration curve for California shows us that the last 15,000 MW of supply is needed for less than 10% of the hours of the year.

Hourly demand in the California ISO for typical summer week

CAISO demand

California load duration curveCAISO load duration curve

Similar disparities exist for gas supply and demand. A typical annual average gas demand in California for “normal” weather is around 6 Bcf/d. This rises to about 7 Bcf/d for a year that includes a cold winter (lots of heating load) and a low hydro year (lots of gas power plant demand). Yet the highest daily sendout recorded in recent years was 8 Bcf/d in the summer and 11 Bcf/d in the winter.

How Gas Operators Use Storage to Meet Peak Demand

Absent storage, the gas companies in California would need to build over 11 Bcf/d of pipeline capacity into the state to ensure ability to meet the peak. And a similar effort would be required to match capacity and peak demand for each local transmission line and each distribution feeder serving a neighborhood. But luckily natural gas can be stored — in the pipeline itself, in underground reservoirs, and in above-ground tanks.  This gives operators the flexibility to pack extra gas into pipelines prior to expected cold days and to draw from underground storage when flowing supplies are insufficient to meet demand.

gas storage slide

California also uses utility regulations that require large industrial and power plant customers to accept curtailment of supply on peak demand days unless the customer wants to pay extra for firm service. Thus, on peak days, there can be a demand response as utilities notify large customers they must curtail gas use. This means that portions of the gas system do not have to be sized to cover these customers on extreme days.

The result of mixing and matching pipeline supply capacity, underground storage capacity, storage in the pipe, and demand response is that California has reliably run its gas system with the approximately 8 Bcf/d of pipeline capacity and 4.5 Bcf/d of storage capacity. This is significantly more efficient than building enough pipeline capacity to cover peak needs.

Historically, the electric industry has built supply capacity to cover peak needs, plus an additional 15% reserve margin for ensuring reliability. In next week’s blog, we’ll explore how storage and demand response may change the paradigm for electricity, allowing the industry to attain some of the system efficiencies gas has achieved.

Want to learn more about how gas systems work?  Look into Enerdynamics’ Gas Systems Fundamentals live seminar.


Footnotes:

[1] From Reaching peak performance: What the electric power sector can learn from society’s other vital networks, Sam Wilkinson, available at https://cdn2.hubspot.net/hubfs/2810531/Collateral/AES%20ES%20White%20Paper%20-%20IHS-Markit%20The%20New%20Energy%20Network.pdf

Posted in Electricity, Natural Gas | Tagged , , , | 1 Comment

Demand Side Management Key to California’s Changing Grid

by Bob Shively, Enerdynamics President and Lead Facilitator

The role of demand side management (DSM) programs traditionally has been three-fold:

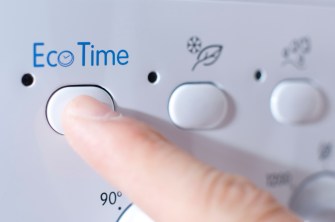

Eco Time or washing

  1. reduce overall usage through energy efficiency (EE) efforts (for example, weatherization or more efficient light bulbs)
  2. reduce usage at times of system peak or system shortages (for example, direct load-control switches on air conditioners or hot water heaters that allow interruption by the utility)
  3. shift demand from peak periods to off-peak periods (for example, ice storage systems for building cooling)

The overriding purpose of such DSM programs has been to offer an alternative to building costly new power plants. But as the grid changes with the rise of renewable and distributed energy resources (DER), the role of DSM itself is positioned for dramatic change.

With California’s renewable goal of 50% by 2030, grid issues are extreme. To determine how DSM might best help support the grid, the Lawrence Berkeley Lab recently worked with consulting firms E3 and Nexant along with various market participants to perform the study 2025 California Demand Response Potential Study – Charting California’s Demand Response Future. Over a two-year period, the team used customer-specific data to evaluate end-use and technology capabilities while focusing on two questions:

  1. What types of demand response services can meet California’s future grid needs?
  2. What is the expected resource base size and cost for demand response services?

A key part of the study was to move away from just thinking about traditional types of DSM and to ask what specific services does the grid need to best utilize DSM resources. The study identified four demand response (DR) service types that will be most helpful:

  1. The shed service is similar to traditional load management programs where load such as air conditioners or hot water heaters are curtailed during peak times.
  2. The shift service is similar to traditional peak demand shifting, except that in the future grid it is expected that it will be necessary to shift load into the middle of the day to utilize the significant solar generation that will come onto the grid.
  3. The shape service accomplishes the same load movement as shed or shift, but instead a service where the load is moved only when needed, the shape service results in permanent changes in load shapes.
  4. The shimmy service moves loads up or down quickly in response to specific system needs, possibly in time increments as small as every 5 minutes or even less.

Likely end-use technologies included in California programs are:

  • electric vehicles (EVs)
  • behind-the-meter batteries
  • air conditioning and HVAC systems
  • pool pumps
  • commercial lighting
  • commercial refrigeration
  • large industrial processes
  • agricultural pumping
  • data center loads
  • wastewater treatment and pumping

The study’s medium demand response scenario for California found that the current time-of-use (TOU) rates and critical peak pricing (CPP) programs provide 1 GW of shed and 2 GW of shift. New programs could provide up to 10 to 20 GWh of daily shift, 2 to 10 GW of cost-effective shed, and 300 MW of load-following or regulation shimmy. So clearly there is significant potential here.

What is needed to make this happen?

The study cover letter from the California Public Utilities Commission (CPUC) suggests that key steps include:

  • Investing in the integration of demand response into wholesale markets where it can be dispatched consistent with locational marginal prices
  • Enabling a new generation of demand response aggregators capable of delivering tailored options that work for customers with unique needs
  • Committing to default TOU rates for all customers
  • Committing to a greater differentiation of incentives based on relative locational value (meaning that DSM provided at one location might be paid more than the same DSM provided at a less valuable location)

As the grid continues to evolve, it will be necessary to reformulate traditional DSM programs to get the most potential from available flexible customer loads. Our expectation is that load resources will be increasingly important in allowing grids to integrate large amounts of renewables at the least cost possible.
